New Maximum Duty Series sight for the Mini 14. The Armson Aiming Concept instantly merges the dot and target allowing two eye sighting with no loss of peripheral vision! Anodized aluminum body, high quality internal optics, and simple adjustments for windage and elevation. A fiber optic light source provides illumination during the day and the optional Tritium upgrade self-powers the sight in low light conditions (must be added as an option below). No batteries required. The all new Upgraded Adjuster and Knob Set is now included as a standard feature at no additional charge.
Our proprietary mount system replaces the stock bolt lock cover plate and includes two additional stabilizer screws on the top of the mount. Installs in minutes and allows you to use stock iron sights with the O.E.G. still in place.
Sight Specifications (not including mount):
Housing: Machined 6061-T6 aluminum
Finish: Matte black anodized
Length: 5.1" (130mm)
Height: 1.08" (27mm)
Width: 1.08" (27mm)
Weight: 3.9 oz (110g)
System Type: Passive Red Dot Collimator
Lens: Glass double achromatic
Optical coating: Multi layer anti-reflective
Magnification: 1x (non-magnifying)
Eye Relief: Unlimited
Reticle Size: 4 MOA
Battery: None required

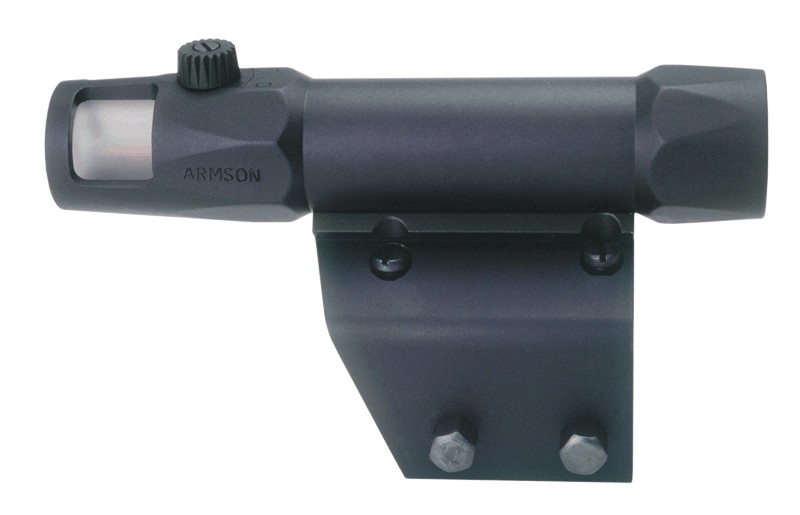

|Max Duty sight on Mini 14Here is the Armson Max Duty for Mini 14. Click to enlarge. |
